Aqualean

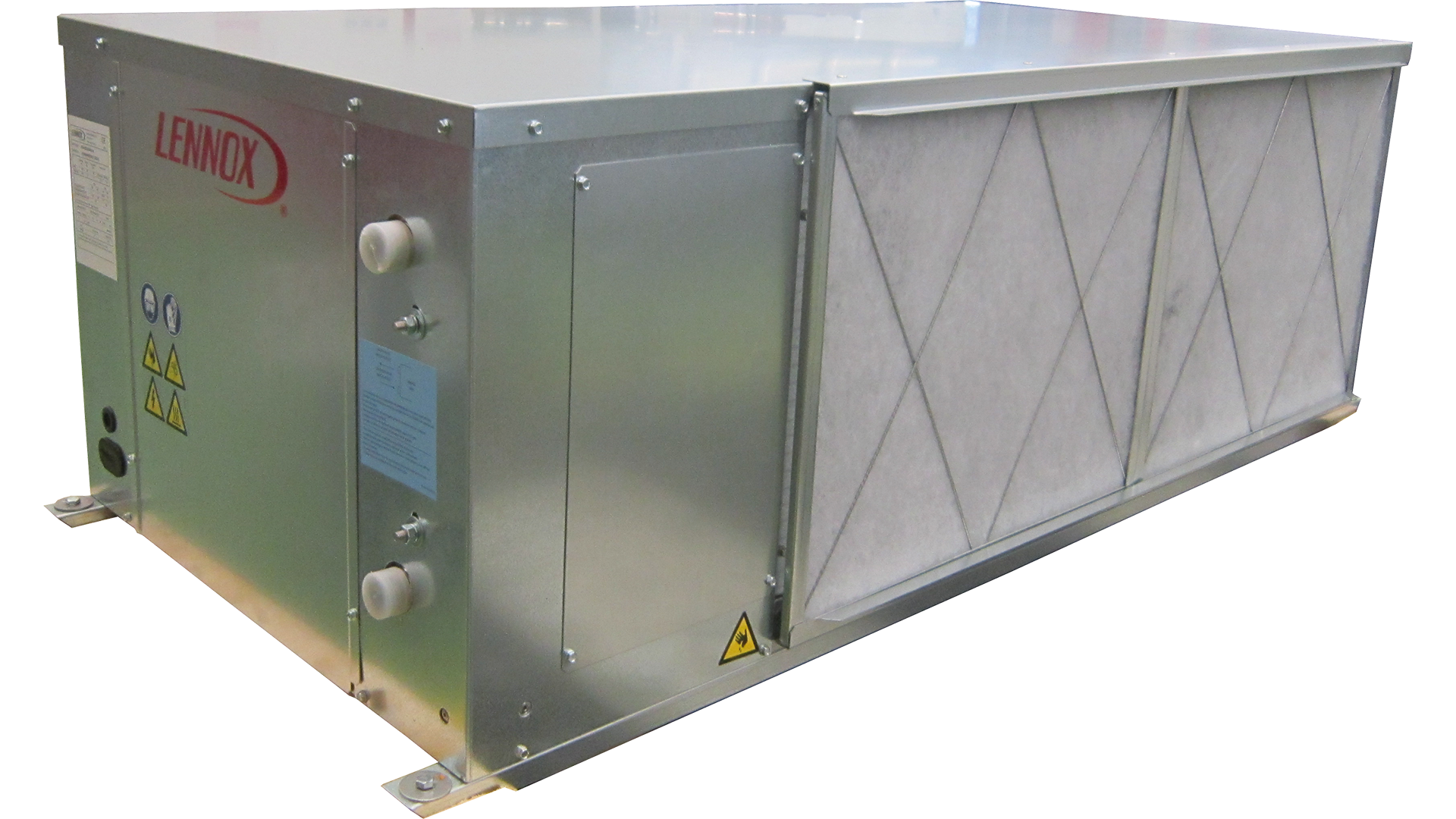

As unidades de ar condicionado compactas, de configuração horizontal, condensação a água AQUALEAN foram especialmente concebidas para pequenas e médias instalações, em escritórios, lojas em centros comerciais, etc. A unidade standard filtra, arrefece e desumidifica o ar (AWC) e, no caso da bomba de calor, aquece também o ar (AWH).

Select Tabs

Nomenclatura do modelo

AW ^A C ^B 007 ^C S ^D N ^E M ^F 1 ^G M ^H LWT ^I

A AW = AQUALEAN

B C = Só arrefecimento - H = Bomba de calor

C Capacidade aproximada de arrefecimento, em kW

D S = 1 circuito

E ---

F M = R-410A

G Número de revisão

H T = 230V/1/50Hz - M = 400V/1/50Hz

I Versão para funcionamento com baixa temperaturas da água (unidades 002-003)

Model Specification

Seasonal Efficiencies Cooling Mode
Product Index
Seasonal Energy Efficiency Ratio - SEER
Seasonal Energy Efficiency
Eurovent Energy Efficiency Class Part Load Operation
Ventilation Data
Minimum Airflow Rate - m³/h
Nominal Airflow Rate - m³/h
Maximum Airflow Rate - m³/h
Water Cooled Condenseur
Nominal water flow rate - l/h
Water pressure drop - kPa
Nominal Thermal Performance Cooling
Cooling Capacity - kW
Total Power Input - kW
EER Net
Acoustic Data
Sound pressure level - Low speed - dB(A)
Sound pressure level - High speed - dB(A)
Auxillary Heating
Gas heating capacity - Standard/High - kW
Electric heater capacity - Standard/High - kW
Electric pre-heater capacity - Standard/High - kW
Hot Water Coil Capacity Air Inlet Water
Electrical Data
Maximum Power - kW
Maximum Current - A
Starting Current - A
Short Circuit Current - kA
Nominal Thermal Performance Heating
Heating Capacity - kW
Total Power Input - kW
Seasonal Efficiencies Heating Mode
Seasonal Coefficient Of Performance - SCOP
Refrigeration Circuit
Number Of Circuits
Number Of Compressors
Refrigerant Load - kg

AWC007
-
160.5
-
1010
1250
1430
1450
25
6.8
1.7
4
49
51
-
2 / 5
-
-
2.7
14.4
61.6
10
-
-
-
1
1
1.3

AWC008
-
152.5
-
1250
1500
1620
1730
30
8
2.1
3.81
50
52
-
2 / 5
-
-
3.3
17.6
68.6
10
-
-
-
1
1
1.3

AWC010
-
150.7
-
1550
1900
2100
2190
40
10.2
2.6
3.92
48
51
-
3 / 9
-
-
4.1
24.6
100.6
10
-
-
-
1
1
1.9

AWC012
-
150.4
-
1620
2000
2200
2410
48
11.2
2.8
4
49
51
-
3 / 9
-
-
4.9
28.6
130.6
10
-
-
-
1
1
1.9

AWC015
-
168.1
-
1850
2450
2610
3070
40
14.5
3.4
4.26
49
53
-
3 / 9
-
-
5.7
12.9
54.1
10
-
-
-
1
1
2.4

AWC018
-
159.7
-
2060
2800
3100
3640
45
17
4.2
4.05
46
51
-
5 / 12
-
-
6.3
14.7
66.9
10
-
-
-
1
1
2.9

AWC020
-
154.3
-
2450
3100
3500
4090
55
19
4.8
3.96
47
54
-
5 / 12
-
-
7.6
17.9
77.9
10
-
-
-
1
1
2.9

Cooling capacity,EER net: Cooling mode :

According to EN14511 nominal conditions
Outdoor temperature 35°C DB
Indoor temperature 27°C DB / 19°C WB

Heating capacity, COP net: Heating mode :

According to EN14511 nominal conditions
Outdoor temperature 7°C DB / 6°C WB
Indoor temperature 20°C DB

Seasonal Energy Efficiency Ratio - Cooling Mode: Seasonal Energy Efficiency Ratio: SEER in accordance with standard EN14825.

Seasonal energy efficiency - Cooling Mode: Space cooling energy efficiency following Ecodesign regulation EU 2016/2281

Seasonal Coefficient of Performance SCOP: SCOP in accordance with standard EN 14825 (average climate conditions).

Seasonal energy efficiency - Heating Mode : Space heating energy efficiency following Ecodesign regulation EU 2016/2281.

Acoustic data : Sound pressure level has been tested at a distance of 2 m from the unit, with duct in aspiration and air discharge, normal absorption in accordance with room size and unit capacity.
